Low-Temperature Dehumidifying Heat Pump Dehumidifier with 15-30°C Adjustable Temperature and 5-99% RH Adjustable Humidity for Fruit Drying Machine

Product Categories
Shanghai Gofun Machinery Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Low-Temperature Dehumidifying Heat Pump Dehumidifier with 15-30°C Adjustable Temperature and 5-99% RH Adjustable Humidity for Fruit Drying Machine

  • 1
  • 2
  • 3

Brand Name : Gofun

Model Number : GFM-CD-15

Certification : CE/ISO9001

Place of Origin : Shanghai, China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T,Western Union,L/C,Visa

Supply Ability : 20 sets per year

Packaging Details : International standard packaging for shipping

Warranty : 1 Year

After-sales service provided : Engineers available to service machinery overseas

Voltage : 220/380/440V, according to customers

Type : Dryer

Material : Food standard SUS 304, 316, accourding to customer

Capacity : 5-1000kg/hour according to customers

Application : Agricultural and sideline products, seafood, fruits and vegetables, dried fruits

Product name : Heat Pump Low Temperature Dehumidifier

End products : Agricultural and sideline products, seafood, dried fruits, etc.

Special process : Integrated structural design,With high temperature hot air circulation drying

Contact Now

Low-Temperature Dehumidification Dryer for Dried Fish and Industrial Fruit Drying Oven
Product Overview
Our heat pump low-temperature dehumidifier is engineered with advanced low dew point dehumidification technology, simulating the physical characteristics of northern winter's northwest wind. This innovative design ensures optimal preservation of materials' original shape, color, and flavor during drying processes.
Working Principle
This fruit drying oven provides heating, cooling, and dehumidification through a sophisticated operational cycle:
  • Moist, hot air is drawn into the system through a negative-pressure circulation fan
  • Air undergoes three-stage cooling and dehumidification process
  • Condensed moisture is efficiently drained away
  • Transformed into low-temperature, low-humidity drying air
  • Heat exchange warms the air while further reducing humidity
  • Conditioned air is distributed back into the drying chamber
Low-Temperature Dehumidifying Heat Pump Dehumidifier with 15-30°C Adjustable Temperature and 5-99% RH Adjustable Humidity for Fruit Drying Machine Low-Temperature Dehumidifying Heat Pump Dehumidifier with 15-30°C Adjustable Temperature and 5-99% RH Adjustable Humidity for Fruit Drying Machine
Material Applications
Ideal for drying and extracting cell liquid from various materials including:
  • Roses, chrysanthemums, honeysuckle
  • Gardenia, jasmine, American ginseng
  • Cistanche and other Chinese herbal medicines
  • Aquatic products and heat-sensitive fruits
Low-Temperature Dehumidifying Heat Pump Dehumidifier with 15-30°C Adjustable Temperature and 5-99% RH Adjustable Humidity for Fruit Drying Machine
Technical Advantages
  • Precise temperature control: 15-30°C adjustable range
  • Accurate humidity control: 5-99% RH adjustable
  • Efficient dehumidification: Average 22KG/hour at 25°C and 70% RH
  • Automatic adjustment: Fan air pressure and speed adapt to conditions
  • Negative pressure cold-air circulation: Ensures excellent drying uniformity
  • Closed system: Maintains stable quality with energy-efficient operation
Technical Specifications
Unit Model Compressor Power Power Input (KW) Heating Power (KW) Rated Temperature Rated Voltage (V) Rated Current (A) Environmental Temperature(℃) Working Fluid Charge(KGS) Sound Level (DB) Machine Size W*L*H(MM) Weight (KG)
GFM-CD-15 6HP 4.5 15 28/30 380 8.6 5-45 4.5 55 1800x1650x1754 450
GFM-CD-30 12HP 9 30 28/30 380 17.2 5-45 9 55 1800x1650x1754 600

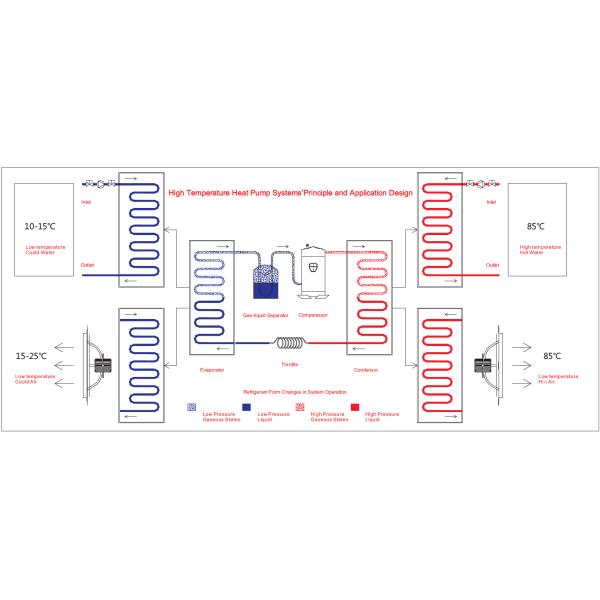

Heat Pump System Principle
The high temperature heat pump consists of compressor, condenser, throttling device and evaporator. The refrigerant cycle efficiently transfers low temperature heat to high temperature medium.
Low-Temperature Dehumidifying Heat Pump Dehumidifier with 15-30°C Adjustable Temperature and 5-99% RH Adjustable Humidity for Fruit Drying Machine Low-Temperature Dehumidifying Heat Pump Dehumidifier with 15-30°C Adjustable Temperature and 5-99% RH Adjustable Humidity for Fruit Drying Machine
Process Display
Low-Temperature Dehumidifying Heat Pump Dehumidifier with 15-30°C Adjustable Temperature and 5-99% RH Adjustable Humidity for Fruit Drying Machine Low-Temperature Dehumidifying Heat Pump Dehumidifier with 15-30°C Adjustable Temperature and 5-99% RH Adjustable Humidity for Fruit Drying Machine Low-Temperature Dehumidifying Heat Pump Dehumidifier with 15-30°C Adjustable Temperature and 5-99% RH Adjustable Humidity for Fruit Drying Machine Low-Temperature Dehumidifying Heat Pump Dehumidifier with 15-30°C Adjustable Temperature and 5-99% RH Adjustable Humidity for Fruit Drying Machine Low-Temperature Dehumidifying Heat Pump Dehumidifier with 15-30°C Adjustable Temperature and 5-99% RH Adjustable Humidity for Fruit Drying Machine Low-Temperature Dehumidifying Heat Pump Dehumidifier with 15-30°C Adjustable Temperature and 5-99% RH Adjustable Humidity for Fruit Drying Machine
Company Information
Gofun Company offers comprehensive turnkey solutions for fruit processing and packaging lines. Our machines have been successfully exported worldwide to Asia, Africa, South America, Europe, and North America.
Low-Temperature Dehumidifying Heat Pump Dehumidifier with 15-30°C Adjustable Temperature and 5-99% RH Adjustable Humidity for Fruit Drying Machine Low-Temperature Dehumidifying Heat Pump Dehumidifier with 15-30°C Adjustable Temperature and 5-99% RH Adjustable Humidity for Fruit Drying Machine Low-Temperature Dehumidifying Heat Pump Dehumidifier with 15-30°C Adjustable Temperature and 5-99% RH Adjustable Humidity for Fruit Drying Machine Low-Temperature Dehumidifying Heat Pump Dehumidifier with 15-30°C Adjustable Temperature and 5-99% RH Adjustable Humidity for Fruit Drying Machine
Our Services
  • Technical support
  • Marketing suggestions
  • Final packing suggestion and design
  • Factory building and design
  • Oversea technical support
  • Oversea equipment maintenance
  • English speaking engineers available
